Enjoy breeze on effortless joy
Napa Valley is known for its tasty wine and beautiful vineyard. Carry our NAPA anywhere feel casual to slow down your life. Design not only for feel causal also suitable for city commuters. It makes it easier to haul and more accessible to commute to a smooth, comfortable riding experience in every corner of the city and valley.
FreeRider NAPA is the first electric bike to FreeRider lineup to build excellent values with high-quality components of an e city bike.
Powered by an integrated 630Wh rechargeable li-ion battery and 80Nm of torque, NAPA accelerates quickly and can reach 150 miles on a single charge.
The front suspension and 80mm fork with lockout offer the most outstanding values in its class.
The design, performance, riding dynamics help you pedaling effortlessly into this new approach to FreeRider values.

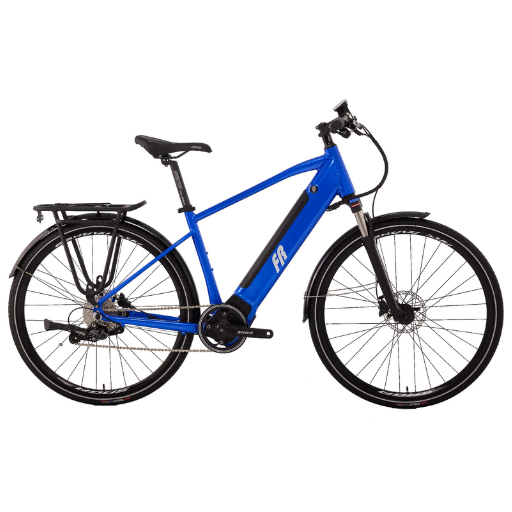

NAPA
Key Features
630WH
Battery Capacity
80NM
Motor Torque
150 MI
Travel Range

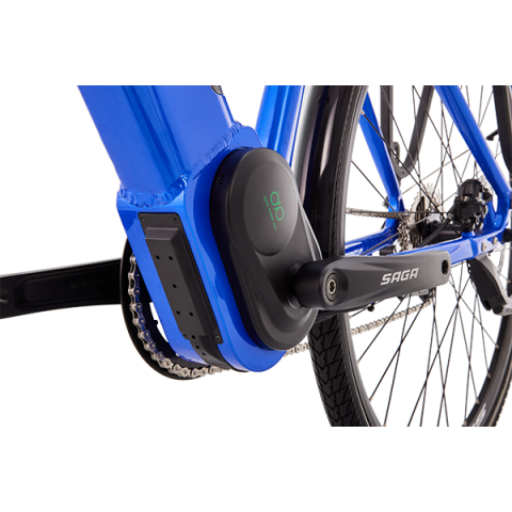

Mid-Drive Motor
Pedal-assist motor is located by your pedals. They provide a stable center of gravity, easily shift on hills, and feel natural while pedaling.
The drive system’s huge 80 Nm of torque makes it easy to fly up the climbs time after time.
The more you pedal, the more power you get it—silky pedaling, silent ride.
Suspension Fork
The front suspension fork offers 80mm of travel, preload adjustment, and lockout.
The easy-to-tune air spring and click-to-adjust rebound and compression damping means you can quickly confidently dial-in suspension to suit your weight, riding style, and favored terrain.
It absorbs even the tough terrain and provides you with a level of ride comfort you never thought possible out there on the trail.

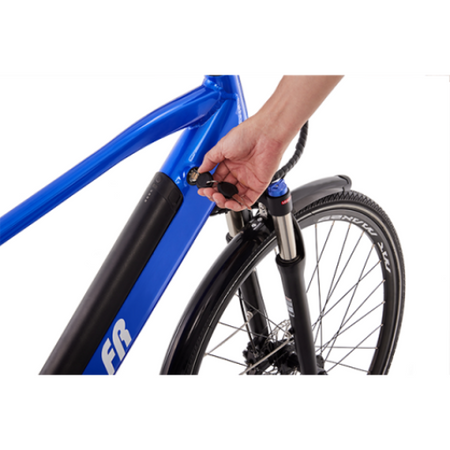

Removable Integrated Battery
The battery is fully hidden in the frame for protection, making it easy to remove the battery without tools.
We use an integrated 630Wh battery capacity that makes it easier to take along and charge up.

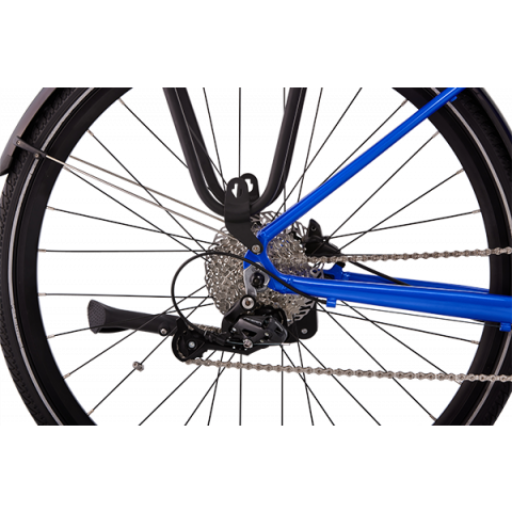

SHIMANO ALTUS, 9-Speed;
Hydraulic Disc Brakes
Build-in with Shimano 9-Speed and 160mm disc brake.
No matter the wet and muddy, the disc brakes offer the strongest stopping power in all conditions.
Fun at trails
NAPA comes with a 4-inch display and an elegant controller to adjust your pedal assist settings and check your distance and battery. Your headlight can be turned on by the controller, too.
Fly further and Faster
With five support modes and one battery,
you ride further than others
Eco mode
Up to 160 miles
20
%Tour mode
Up to 110 miles
40
%Tour Plus mode
Up to 85 mile
60
%Sport mode
Up to 65 miles
80
%Turbo mode
Up to 40 miles
100
%Unbox NAPA
FreeRider e-bikes can be unboxed anywhere and assembled in a matter of minutes because 90% of bikes are assembled in the box.
Size S for height 5'1~5.7"
Size M for height 5'7" to 5'10"
Size L for height 5'9" to 6'1"
Size XL for height 6'1" to 6'4"
Sizing to be used as a reference only, available sizes may vary from country.
M
A: seat tube length 457mm
B: seat tube angle 74 degree
C: top tube length effective 583.9mm
D: head tube length 180mm
E: head tube angle 71 degree
F: fork rake 42 mm
G: wheelbase 1101.1 mm
H: chainstay length 455
I: button bracket drop 50 mm
J: stack 645.3 mm
K: reach 399.4 mm
L: handlebar width 630mm
M: stem length 90mm
N: crank length 170 mm
O: wheel size 700C
L
A: seat tube length 508mm
B: seat tube angle 74 degree
C: top tube length effective 603.2mm
D: head tube length 180mm
E: head tube angle 71 degree
F: fork rake 42 mm
G: wheelbase 1120.4 mm
H: chainstay length 455mm
I: button bracket drop 50 mm
J: stack 645.3mm
K: reach 418.8 mm
L: handlebar width 630mm
M: stem length 90mm
N: crank length 170 mm
O: wheel size 700C
COMPONENTS
Starting at $3,750 or
$132/mo for 18 months; APR 15.9% Learn More
Frameset
Frame
6061 Alloy-TB, head tube 1-1/8 W/Disc EMD, cable insides
Suspension Fork
UDING TK700 HLO27.5, 25.4*28.6*30.0mm; 80mm travel, lockout, integrated light mount
Seat Binder
Alloy, bolt-type, 30.9mm
Drivetrain
Motor
FreeRider 250W mid-drive, brushless, 80Nm torque
Rear derailleur
Shimano ALTUS, 9-speed
Shift levers
Shimano ALTUS, 9-speed
Cassette
Shimano ALTUS, 9-speed, 11-34T
Crankset
Custom alloy forged crankarms
Battery
Integrated, removable and lockable, 630Wh li-ion battery, alloy casing, state of charge display
Chain
KMC E9S NP/BK 126L
Cockpit
Handlebars
Alloy, 630mm width, 40-degree, B/BORE: 31.8mm
Seatpost
6061 alloy, 30.9mm *350mm
Saddle
Steel rails, w/o clamp
Stem
Alloy 25.4 *28.6mm, EXT90mm,
Display
4"
Brakes
Front Brake
BENGAL ARES 3, 2-position caliper, hydraulic disc, 160mm 6-bolt
Rear Brake
BENGAL ARES 3, 2-finger blade, hydraulic disc, 160mm 6-bolt
Wheels
Rims
RJA 700C"*20mm
Hubs
Alloy hub disc, M9*14G*32H*100/108mm
Spokes
14G, F/R: 287L/289L, W/14mm BRASS, CP Nipples
Tires
CST 700C *40C
Accessories
Pedals
Axle 9/16 inch
Kickstand
40mm mount
Headlight
12V, LED, 210 lumen
Fenders
Aluminum fenderstay
Wheel reflectors
Front *1 and rear *1
Rack
Built-in pannier mounts, 33 lbs max load
Charger
42V2A output, 100-240V
Weight
Bike: 46 lbs
Warranty
5-year limited on the frameset
2-year on the battery pack
See the details
User Manual
Rebate
Up to $900 manufacture rebate and 0% APR for 18 months
